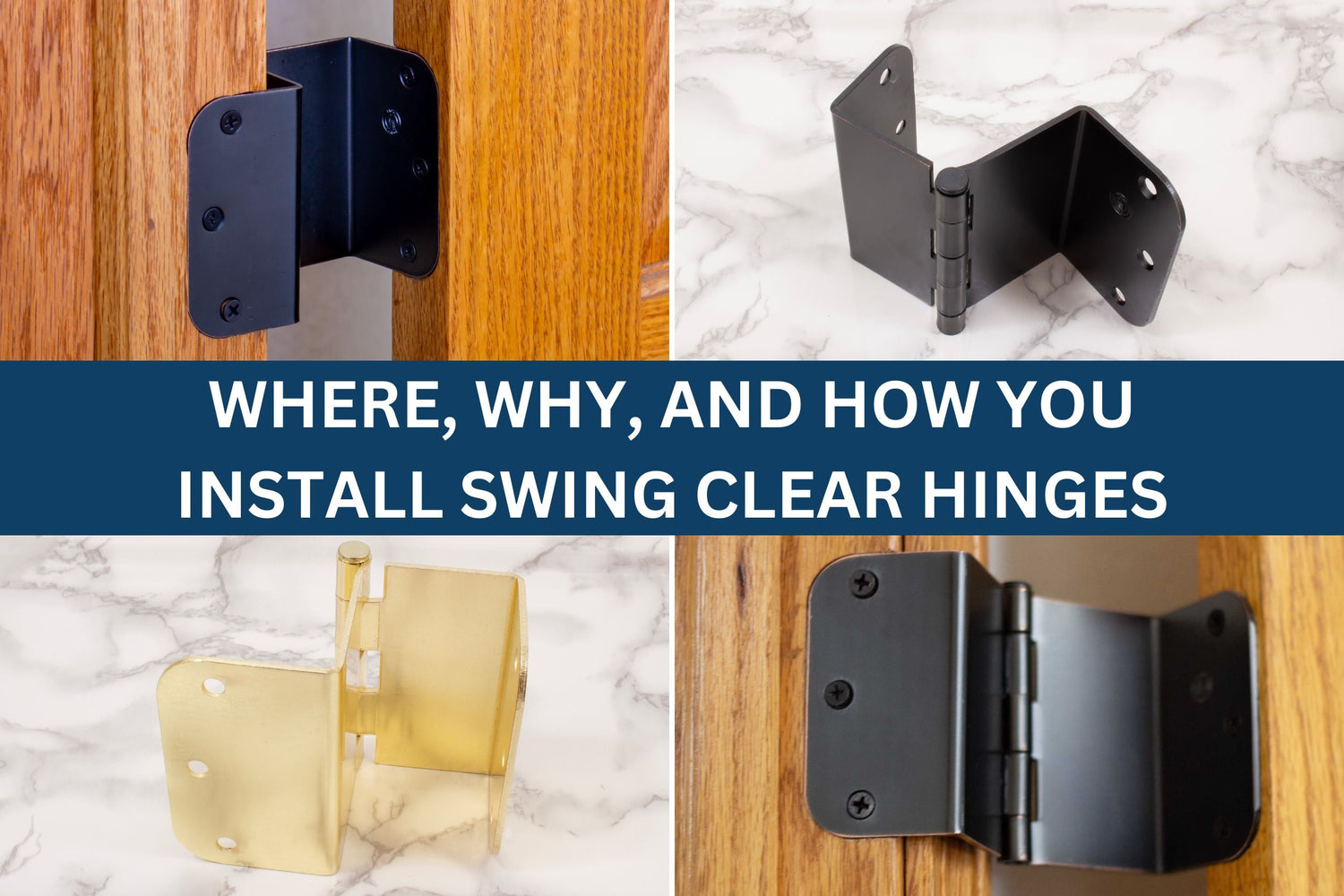

Where, Why, and How You Install Swing Clear Hinges

Swing Clear Hinges: Where, Why, and How to Use Them in the Home

Swing clear hinges are a smart, accessible upgrade for any homeowner aiming to maximize doorway space and improve movement throughout their residence. Here’s what you need to know about where, why, and how to install swing clear hinges for a more functional and accessible home.

What Are Swing Clear Hinges?

Swing clear hinges, also known as offset hinges, are specially designed for interior doors to allow the door to swing completely clear of the door frame when opened. By offsetting the hinge barrel, the door is pulled fully aside, removing the barrier of the door edge from the opening. This increases usable space and gives wider, more accessible passageways, making them perfect for residential spaces that require increased accessibility.

Where Should Swing Clear Hinges Be Installed?

Swing clear hinges are ideal for a variety of applications; however, they are most popular in homes where increased accessibility is key. This includes residences where elderly people, people with disabilities, or even individuals recovering from surgery live and might require more room for walkers or wheelchairs.

Why Should You Install Swing Clear Hinges?

Swing clear hinges can provide an extra few inches of opening space for doorways. These extra inches can make a big difference when using wheelchairs, walkers, or other accessibility aids. Swing clear hinges also typically can be easily swapped out with traditional residential hinges. This means that improving a doorway's accessibility is possible without major remodeling.

How Are Swing Clear Hinges Installed?

The installation process for swing clear hinges is relatively simple, especially if you are replacing existing door hinges. Stone Harbor Hardware Swing Clear Hinges measure 3-1/2 inches tall and are available with 1/4" and 5/8" radius corners. Make sure to know what type of radius hinge you are replacing before purchase and installation. To install swing clear hinges, follow these steps:

1. Remove Old Hinges: Unscrew and remove the existing door hinges. Take the door off the frame.
2. Prep the Door and Frame: Check that the hinge recess (mortise) is appropriately deep and wide for the new swing clear hinge leaf. Minor chiseling may be needed for a flush fit.
3. Attach Hinges to the Door: Securely fasten the new swing clear hinge to the door, ensuring alignment with the old screw holes or drilling new ones as necessary.
4. Rehang the Door: With the hinges attached to the door, align and fasten the other side to the door frame. A helper can be handy at this stage.
5. Test the Door: Open the door fully to ensure it swings completely clear of the frame and doesn’t bind or rub.

Outfit Your Home with Swing Clear Hinges

Swing clear hinges are a small change that can make a big difference in home accessibility and ease of use. Check out our wide selection of Swing Clear Hinges at Stone Harbor Hardware today!
